Super Silent 80kva Perkins Diesel Generator Noise 68dB At 7 Meters

1 SET
MOQ
Negotiation
Cena £
Super Silent 80kva Perkins Diesel Generator Noise 68dB At 7 Meters
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Output Power: 80KVA / 64KW
Frequency: 50/60HZ
Voltage: 220/380V
Engine: Original UK perkins 1104A-44TG2
Alternator: Original Stamford / Mecc alte
Controller: Deepsea, Smartgen
MCCB: ABB or Delixi , 3 pole
Cooling system: Water cooled
Genset type: super silent soundproof
ATS: ABB / Socommec / Asikai
Warranty time: 1 year or 1000 hours
High Light:

open type genset

,

water cooled generator

Podstawowe informacje
Place of Origin: WUXI city CHINA
Nazwa handlowa: GPRO
Orzecznictwo: ISO,CE Certification
Model Number: PF-P88S
Zapłata
Packaging Details: Poly wooden case
Delivery Time: 25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set / Month
opis produktu

80KVA Perkins generator specification:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-P88S
1.2 Prime at 50HZ, 40℃ ambient 64KW 80KVA
1.3 Standby at 50HZ, 40℃ ambient 70KW 88KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2600x1000x1485 mm
1.7 Weight 1450kg
1.8 Fuel consumption 100% prime load 215g/kw.h
1.9 Noise Level at 7 (Normal/Super) 75dB
1.10 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set
1.11 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand UK Perkins
2.2 Engine Model 1104A-44TG2
2.3 Governor/Class Mechanical Governor
2.4 Cylinder NO. 4
2.5 Engine build Vertical in-line
2.6 Fuel spray pattern direct injection
2.7 Aspiration Turbocharged, air-to-air charge cooled
2.8 Cooling mode Radiator cooled (enclose water)
2.9 Bore and stroke 105×127mm
2.10 Compression ratio 18·3 : 1
2.11 Displacement 4.41L
2.12 Engine Prime Power at 1500rpm 72KWm
2.13 Engine Standby Power at 1500rpm 79KWm
2.14 Start-up mode 12V, electric
2.15 Battery capacity /
2.16 Starting/Min temperature /
2.17 Lubricating oil consumption Lubricating oil consumption less than 10% Fuel consumption
2.18 Lubrication oil capacity 8 litres
2.19 Coolant capacity – radiator and engine (40℃) 12.6litres
2.20 Exhaust temp – full load prime 514°C
2.21 Exhaust gas flow – full load prime 15,2m³/min
2.22 Exhaust gas back pressure max 15 kPa
2.23 Air flow – radiator (40℃ ambient) /
2.24 Pusher fan head (duct allowance) 40℃ /
2.25 Air intake – engine– full load prime 6,01m³/min
2.26 Standard Air intake temp 25℃
2.27 Fuel type #0 Diesel (Natural temperature)
2.28 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.29 Exhaust system Adopt industrial high efficiency silencer and flexible bellows
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model UCI224G
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 144.3A
3.12 Efficiency 0.903
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 415Kg





Description:



1. Power Range: 64KW / 80KVA ,  70KW / 88KVA

2. Engine: UK Perkins original import from UK

3. Alternator: Genuine Stamford, Marathon, Meccalte, etc

4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing

5. ATS is optional, including ABB/ SOCOMMEC and world famous brand

6. Type: Open type, Soundproof type, Trailer type, Container type, etc

       7. Color: Can be customized



Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow

6. Standby power or main power, indoor or outdoor using.



Competitive Advantage:



1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.

10. Big OEM of Perkins /Cummins engines and Stamford alternators

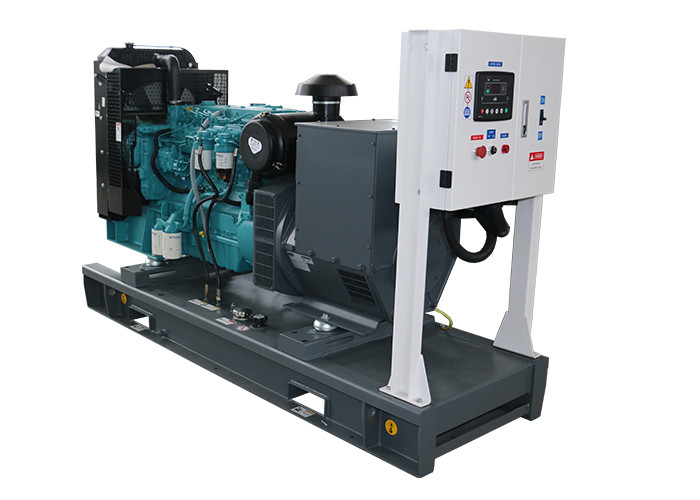

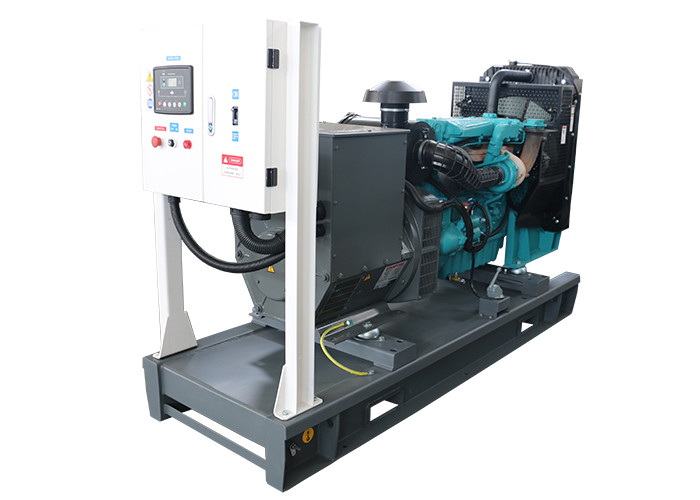

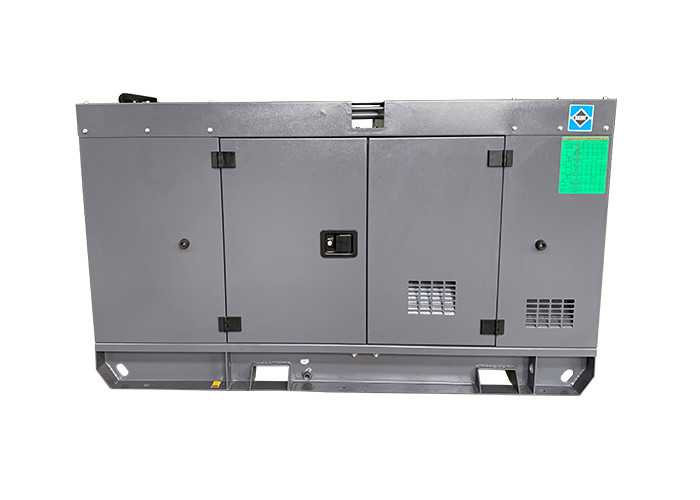

super silent 80KVA Perkins diesel generators photos:



Super Silent 80kva Perkins Diesel Generator Noise 68dB At 7 Meters 0
