2000kva open Perkins Diesel Generator with synchronizing system , parallel silent genset 1600KW

1
MOQ
negotiable
Cena £
2000kva open Perkins Diesel Generator with synchronizing system , parallel silent genset 1600KW
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Power(Prime): 2000KVA/1600KW
Frequency: 50/60hz
Current: 3200A
Voltage: 220/380V, 240V,400V
Engine: Perkins-4016TAG2A
Alternator: Meccalte/Stamford/Marathon/China brand
Controller: Deepsea/Smartgen/Harsen
MCCB: ABB/Delixi
Warranty: One year or 1000hrs
Fuel tank: 8 hours contunuous running
ATS: Optional
High Light:

open type genset

,

water cooled generator

Podstawowe informacje
Place of Origin: Wuxi, China
Nazwa handlowa: GPRO
Orzecznictwo: ISO, CE
Model Number: B-P2000
Zapłata
Packaging Details: Plywooden box or plastic poly
Delivery Time: 25-30 days after advance payment
Payment Terms: T/T or L/C
Supply Ability: 500pcs/ Month
opis produktu

2000kva open Perkins Diesel Generator with synchronizing system , parallel silent genset 1600KW



Perkins diesel generator ​specifications:



4016TAG2A PI734F



ENGINE
Manufacturer: PERKINS
Country of origin: UK
Engine Model: 4016TAG2A
Engine Speed: 1500RPM
ENGINE
PRIME POWER 1715 kWm
STANDBY PWOER 1886.5 kWm
Type…………………………………  16 Cylinders, 4 stroke, V type,
Turbocharged, inter-cooling
Combustion Type………………Direct Inject
Number of Cylinder……………16 cylinders.V
Bore ×Stroke…………………… 160×190 mm
Displacement…………………… 61.1 L
Governor Method………………Electric Governor
Cooling Method………………….Fresh water force circulation
Starting Method…………………Electric Motor 24V
Fuel Filter…………………………...Full flow, cartridge type
Oil Filter…………………………….. Full flow, cartridge type
Lube oil Capacity………………..2.0 g/kw.h
Fuel Consumption………………208 g/kw.h (full loading)



ALTERNATOR
Manufacturer: STAMFORD
Country: CHINA
Rated Power Factor………………………0.8
Insulation Class…………………………… H
Protection Class……………………………..IP23
Number of Pole………………………………4
Number of wire……………………………3 phase 4 wires
Excitation………………………………………Brushless, Self-excited
Cooling System………………………………IC01
Winding Pitch…………………………………2/3
Rotor support type…………………………Single type
Voltage regulation…………………………+/- 1%
Total harmonic TGH/THC…………………At no load <1.5%,
on load <2%
Wave form: NEMA (TIF)……………………<50
Wave form: IEC (THF)………………………<2%



Description:

1.    Power: 2000kva/ 1600kw

2.    Engine: Perkins

3.    Alternator: Genuine Stamford, Marathon, Meccalte, etc

4.    Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5.    ATS is optional

6.    Type: Open type, Soundproof type, Trailer type, Container type, etc

7.    Color: Can be customized



Applications:

1.    Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2.    Home use: personal use for house, camping, party, etc

3.    Telecom, Mobile tower, etc

4.    Island, Desert or any place without electricity

5.    As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6.    Standby power or main power, indoor or outdoor using.

7. Rental field.



Competitive Advantage:

1.    Full power range.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Fast delivery. Big quantity of Engines in stock.

5.    The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6.    Use high standard of sponge to make soundproof.

7.    The canopy design is user friendly, and easy for maintenance.

8.    Pre and after sales service is provided.

9.    Fast response for the inquires, service, etc.

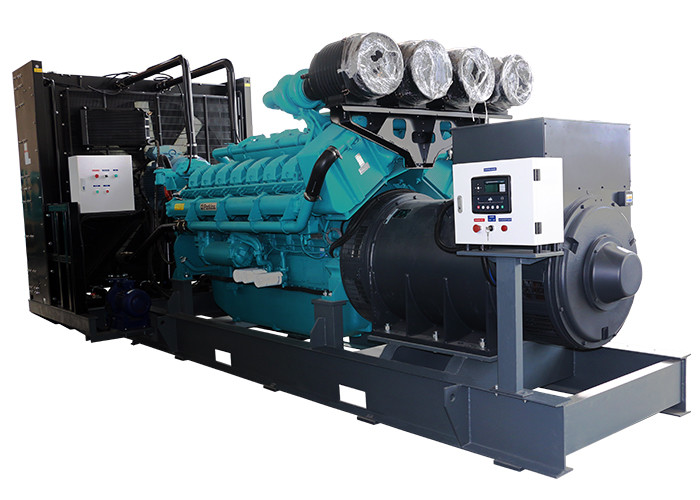

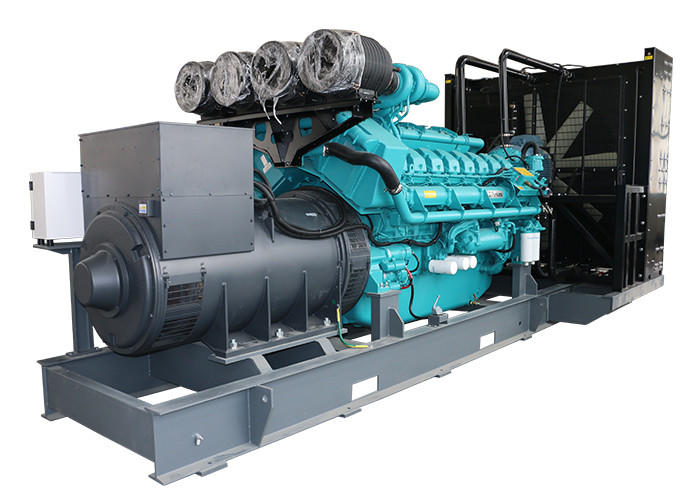

Perkins diesel generator open type photos:

2000kva open Perkins Diesel Generator with synchronizing system , parallel silent genset 1600KW 0

2000kva open Perkins Diesel Generator with synchronizing system , parallel silent genset 1600KW 1
