160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator

1 SET
MOQ
USD10400 - USD27000
Cena £
160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Output Power: 160KW
Frequency: 50/60HZ
Voltage: 220v - 690v optional
Engine: Cummins, Perkins, Deutz, Iveco, Chinese brand for optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea, Smartgen, Harsen for optional
MCCB: ABB or Delixi
Cooling system: Water cooled
Genset type: Open type, Silent type, Container type, Trailer type for optional
ATS: Optional
High Light:

cummins diesel genset

,

emergency diesel generator

Podstawowe informacje
Place of Origin: Jiangsu of China
Nazwa handlowa: GPRO
Orzecznictwo: ISO,CE Certification
Model Number: PF-DC220
Zapłata
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
opis produktu

160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator

Model: PF-DC220

Prime Power

  200/160 (KVA/KW)

Standby Power

    215/172  (KVA/KW)

 Freqency

50HZ

Phase Number

3

Power factor

0.8 COSØ

Rated Voltage

400/230V

Net Weight

1700 KG

Dimention

  2394*980*1636mm(length*width*height)

Engine Mode

Cummins  6CTAA8.3-G2

Engine Speed

1500RPM

Fuel Comsuption

45 L/H

Cylinder Number

6

Bore/Stroke

114*135 mm

Capacity

8.3 L

Engine Air Flow

240 m3/min

Exhaust Gas Flow

32.58 m3/min

Exhaust Gas Temperature

640 °c

Total oil capacity

20 L

Total Coolant Capacity

 31 L

Alternator model

Leroy Somer LSA46.2L6/Stamford 274H

Starting Mode

24V Electronic

Run Time (50% Load)

10-12 hours

Coupling

SAE Disc-coupling

Phase/Poles

3 Phase 4 Wire

Excitation

Brushless,self-excited, AVR regulation

Insulation System

Class H

Protection Class

IP23

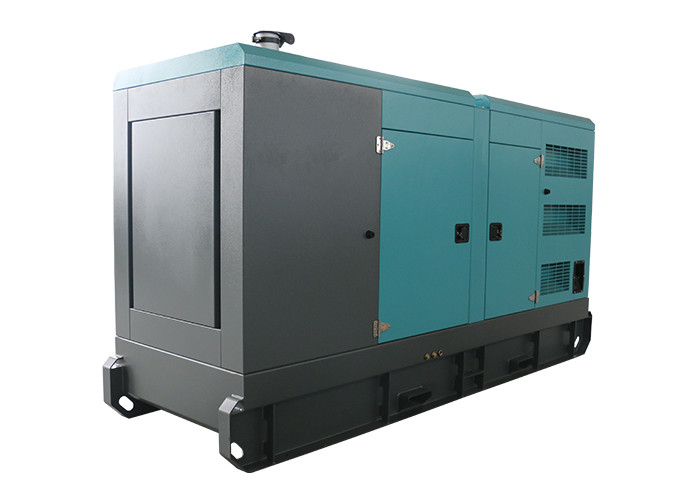

160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator 0

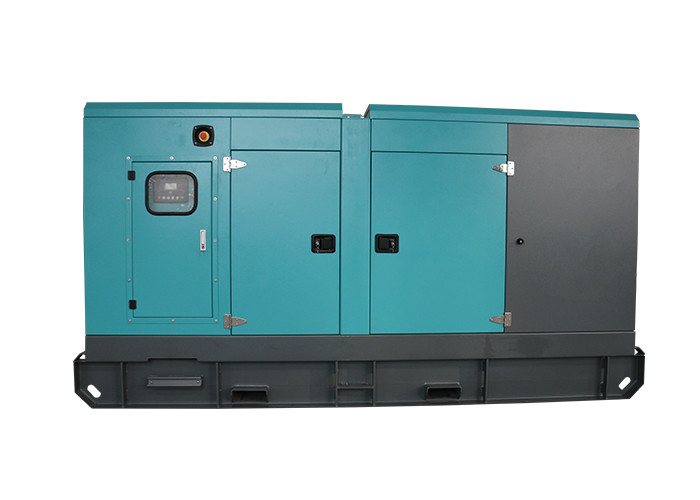

160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator 1
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

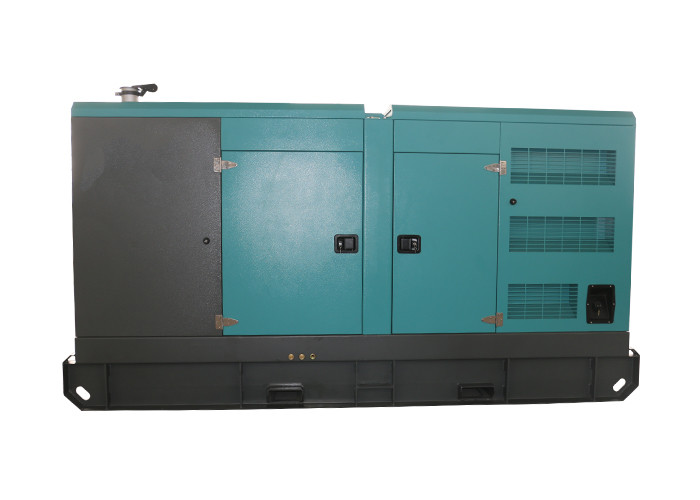

 160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator 2
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
